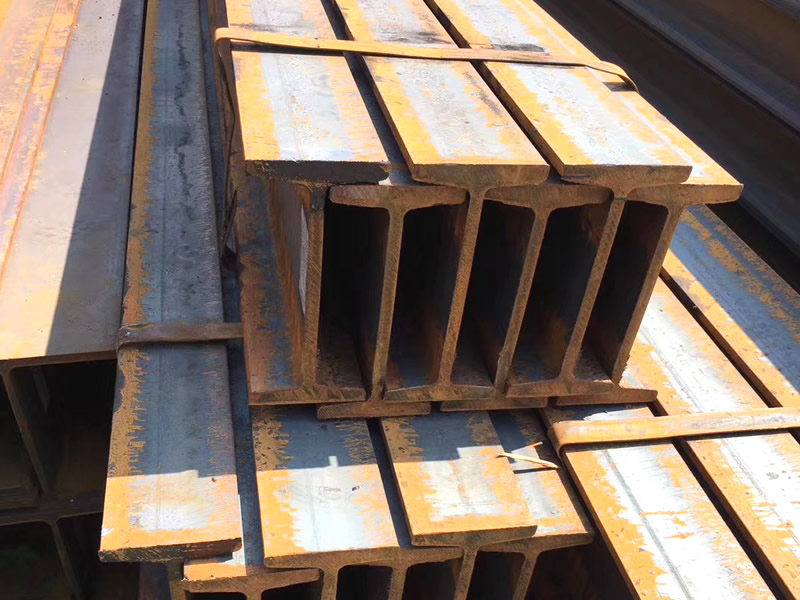

IPN Tapered Flange Beam

  • Main Grades: S355J0+AR,S275JR+AR,S275J0+N,S235JR,S355JR,A572GR50,S355J2
  • Steel Standard: ASTM,EN10025-2,EN10365,DIN EN10034,EN10024,EN10163
  • Length: 1000mm-12000mm
  • Specification (mm): IPN80,IPN100,IPN120,IPN180,IPN200,IPN220,IPN300,IPN320,IPN360,IPN400,IPN500,IPN600
  • Surface treatment: Black,Hot dip galvanized,Primer painting,shot blasting
(※ Click this button to inquiry)
■ Overview
IPN also named as tapered flange beam and taper flange i section,ipn steel beam with inclined internal surface of the flanges and dimensions according to EN 10365.Steel materials S355J2,S275J0 with low temperature impacting test IPN steel beams in inventory for shipment within 3 days.
■ Full Data
  Additional Technical Services for IPN steel:
♦ Chemical composition and Mechanical properties test
♦ Third-Party Inspection arrange with ABS,Lloyd's Register,BV,DNV-GL,SGS
♦ Tolerance on shape and dimensions comply to EN 10034
♦  Dimensions for IPN stock Length normally within 6M-12M
    IPN80 H80*42*3.9*5.9 IPN100 H100*50*4.5*6.8 IPN120 H120*58*5.1*7.7
    IPN140 H140*66*5.7*8.6 IPN160 H160*74*6.3*9.5 IPN180 H180*82*6.9*10.4
    IPN200 H200*90*7.5*11.3 IPN220 H220*98*8.1*12.2 IPN240 H240*106*8.7*13.1
    IPN260 H260*113*9.4*14.1 IPN280 H280*119*10.1*15.2 IPN300 H300*125*10.8*16.2
    IPN320 H320*131*11.5*17.3 IPN340 H340*137*12.2*18.3 IPN360 H360*143*13*19.5
    IPN400 H400*155*14.4*21.6 IPN450 H450*170*16.2*24.3 IPN500 H500*185*18*27
    IPN550 H550*200*19*30 IPN600 H600*215*21.6*32.4
■ Grades
All Steel Grades Chart for Tapered Flange beams:

MATERIAL STEEL GRADE
Low temperature IPN S235J0,S235J0+AR,S235J0+N,S235J2,S235J2+AR,S235J2+N
S355J0,S355J0+AR,S355J2,S355J2+AR,S355J2+N,A283 Grade D
S355K2,S355NL,S355N,S275NL,S275N,S420N,S420NL,S460NL,S355ML
Q345C,Q345D,Q345E,Q355C,Q355D,Q355E,Q355F,Q235C,Q235D,Q235E
Mild steel IPN Q235B,Q345B,S355JR,S235JR,A36,SS400,A283 Grade C,St37-2,St52-3,
A992,A572 Grade 50,A633 Grade A/B/C,A709 Grade 36/50
