HOT ROLLED STAINLESS PLATE 06Cr11Ti

06cr11ti stainless sheet named as 0Cr11Ti stainlee plate in old version）is a ferritic stainless steel materials which commonly used in machinery, construction and other projects. Due to the addition of a lot of alloying elements,the strength and hardness of HOT ROLLED STAINLESS PLATE 06Cr11Ti have been greatly improved.06cr11ti stainless plate is equivalent to suh 409 stainless steel plate in Japanese specification JIS G 4312.

Technical Requirements & Additional Services for 06cr11ti stainless steel plate:
♦  Ultrasonic examination comply to A578/A578M A577/A577M A435/A435M
♦  Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦  PMI test report,Cutting and welding as per end user’s demands

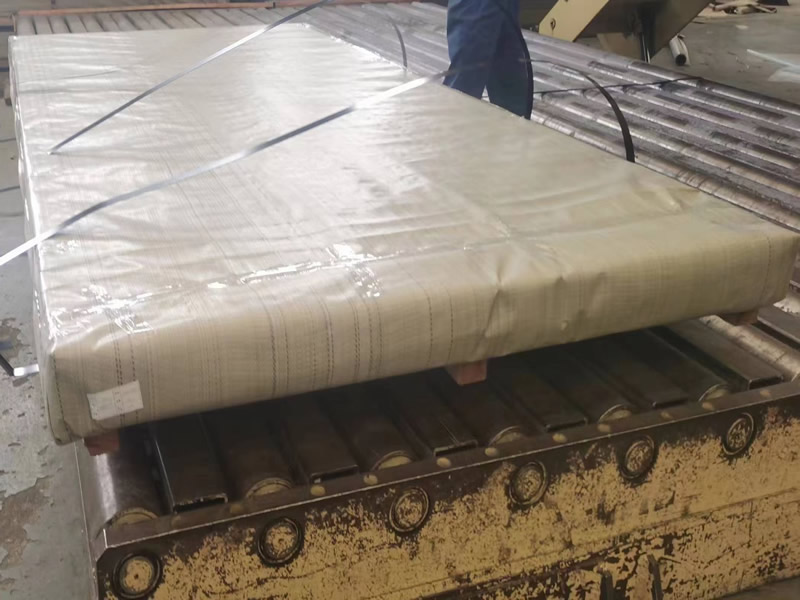

♦  Packing with water-resistance paper and Non-fumigation wooden crates
♦  No.1 Surface with solid solution and pickling
♦  2D Surface with solid solution and pickling and polishing

►Mechnical property for HOT ROLLED STAINLESS PLATE 06Cr11Ti

06cr11ti stainless sheet
Yield strength (≥Mpa)	Tensile strength (≥Mpa)	Elogation in 50mm min. %	Hardness, Max
			Brinell HBW	Rockwell HRBW
170	380	20	179	88

►Chemical composition for HOT ROLLED STAINLESS PLATE 06Cr11Ti (Heat Analysis Max%)

Main chemical elements composition of 06cr11ti stainless sheet
C	Mn	P	S	Si	Cr
0.08	1.0	0.045	0.030	1.0	10.5-11.7
Ni	Mo	N	Cb	Al	Ti
0.60	-	-	-	-	6*C-0.75
