A709 Grade 36,A709Gr36T

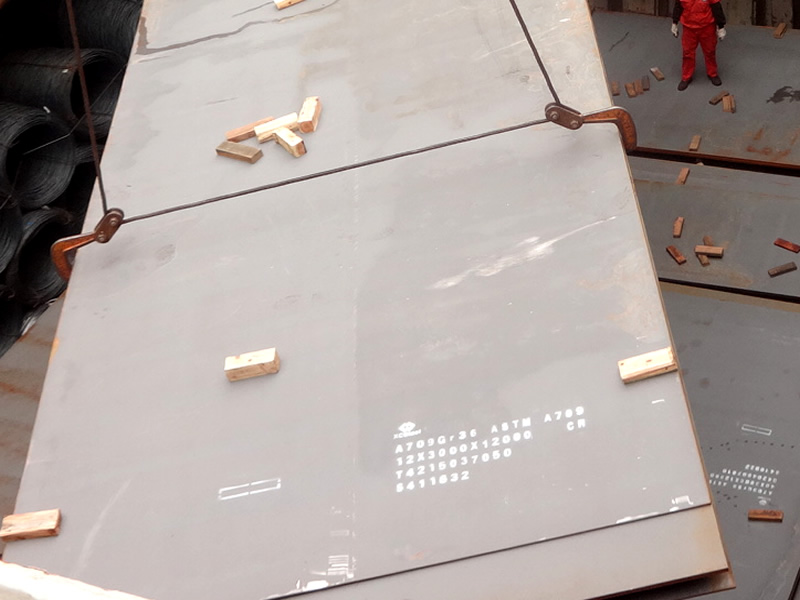

A709 Grade 36,A709Gr36,A709Gr36 steel plate is mainly used for built steel bridges.HSLA steel plate A709Gr.36 owned minimum yield strength at 250Mpa and tensile strength between 400 and 550 Mpa.For the delivery condition of steel plate A709 Grade 36,As rolled,Control rolled,TMCP with or without accelerated cooling,or quenching and tempering is all ok.Xinsteel stock different thicknesses low alloy steel plate A709Gr36 in our port warehouses which ready for shipping out,welcome customers ask for stock list.

Technical Requirements & Additional Services for A709Gr36 steel plate:
♦ High tension test
♦ Low temperature impacting test
♦ Simulated post-welded heat treatment (PWHT)
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ When cooper steel is specified for A709Gr36,the content Cu≥0.20%
♦ Shot blasting and Painting,Cutting and welding as per end user’s demands

►Mechnical property for A709Gr36 steel plate:

Yield strength (≥Mpa)	Tensile strength (Mpa)	Elongation in ≥,%
255	450-585	200mm	50mm
		19	23

►Chemical composition for A709Gr36 steel plate (Heat Analysis Max%)

Main chemical elements composition of A709Gr36 steel plate
Thickness(mm)	C	Si	Mn	P	S	Cu (Min)
T≤20	0.25	0.40	...	0.04	0.05	0.20
20<T≤40			0.80-1.20
40<T≤65	0.26	0.15-0.40
65<T	0.27		0.85-1.20
